REBOP ATOM
11W COMBINATION AMP
ATOM 11W COMBINATION AMP
SINGLE-ENDED CLASS A AMPLIFICATION : EL34 POWER : EMINENCE SC64
LOUDSPEAKER : HAND-WIRED TURRET BOARD CONSTRUCTION
SINGLE-ENDED CLASS A AMPLIFICATION
11 WATTS OUTPUT POWER
EMINENCE SC64 LOUDSPEAKER
HAND-WIRED TURRET BOARD CONSTRUCTION
SONIC BLISS.

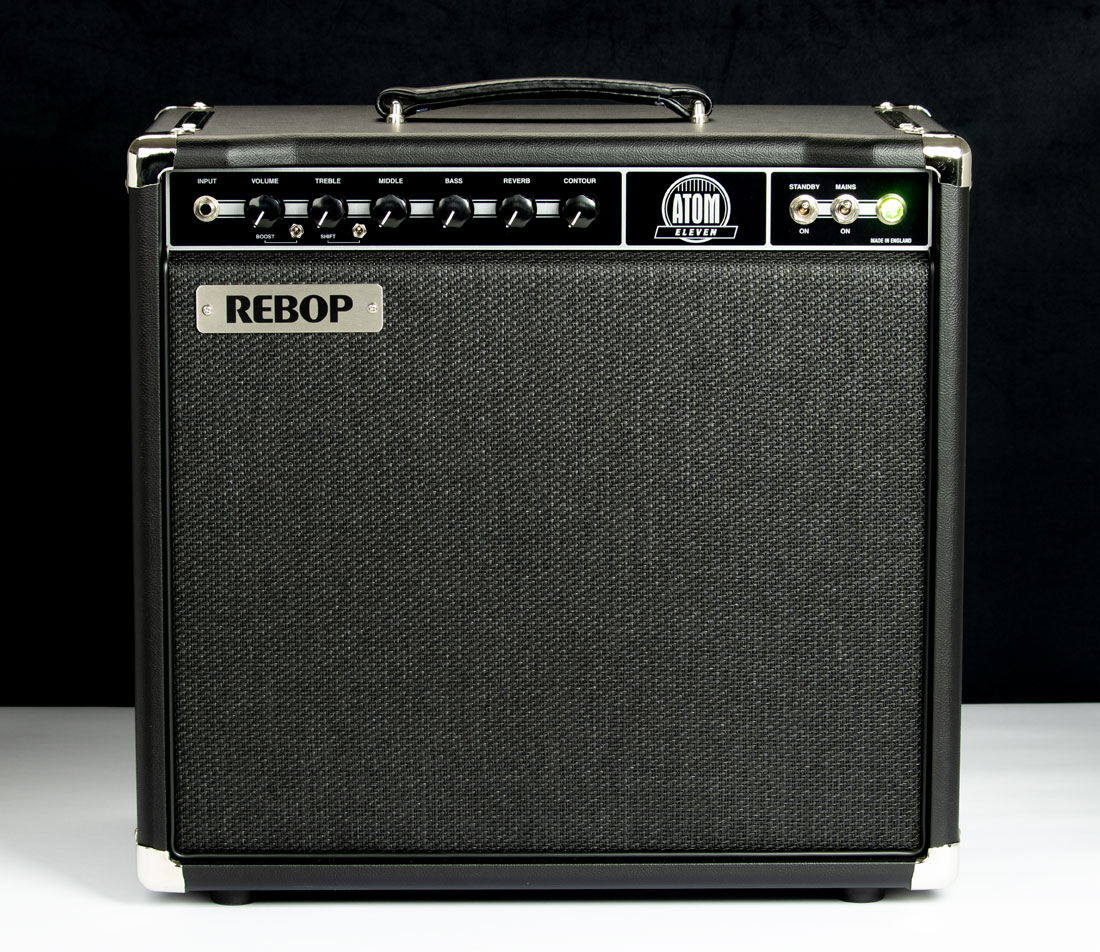

The REBOP ATOM is a precision engineered, all-valve amplifier that is hand-built using only the finest available components. Great for home use, recording or intimate gigs, the single-ended Class A design has an output of 11 watts RMS and is equipped with an Eminence SC64 loudspeaker to deliver an outstanding range of clean and overdriven sounds.
The ATOM features comprehensive tone shaping, footswitchable Volume Boost, valve driven long-spring Reverb circuit and power amp Contour control. The output stage utilises a single, cathode biased EL34 pentode for unparalleled tone and dynamic response, while a solid state rectifier ensures a fast attack and ultimate reliability.
SONIC BLISS.
The REBOP ATOM is a precision engineered, all-valve amplifier that is hand-built using only the finest available components. Great for home use, recording or intimate gigs, the single-ended Class A design has an output of 11 watts RMS and is equipped with an Eminence SC64 loudspeaker to deliver an outstanding range of clean and overdriven sounds.
The ATOM features comprehensive tone shaping, footswitchable Volume Boost, valve driven long-spring Reverb circuit and power amp Contour control. The output stage utilises a single, cathode biased EL34 pentode for unparalleled tone and dynamic response, while a solid state rectifier ensures a fast attack and ultimate reliability.
ATOM 11W COMBINATION AMP
SINGLE-ENDED CLASS A AMPLIFICATION : EL34 POWER : EMINENCE SC64
LOUDSPEAKER : HAND-WIRED TURRET BOARD CONSTRUCTION
SONIC BLISS.
The REBOP ATOM is a precision engineered, all-valve amplifier that is hand-built using only the finest available components. Great for home use, recording or intimate gigs, the single-ended Class A design has an output of 11 watts RMS and is equipped with an Eminence SC64 loudspeaker to deliver an outstanding range of clean and overdriven sounds.
The ATOM features comprehensive tone shaping, footswitchable Volume Boost, valve driven long-spring Reverb circuit and power amp Contour control. The output stage utilises a single, cathode biased EL34 pentode for unparalleled tone and dynamic response, while a solid state rectifier ensures a fast attack and ultimate reliability.
FEATURES AND SPECIFICATION
Output Power
11 Watts RMS

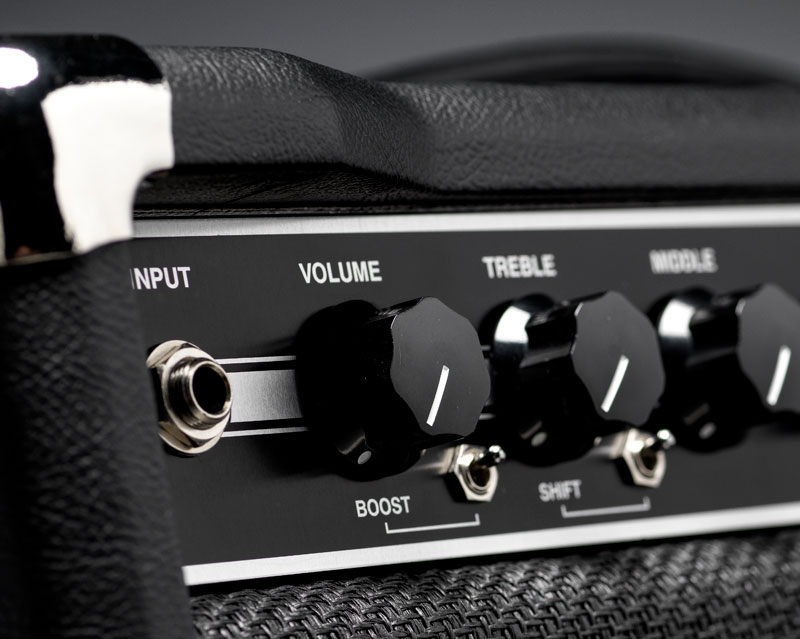

Controls
Volume, Boost switch, Treble, Shift
switch, Middle, Bass, Reverb, Contour
Preamp Valves
12AX7 x2, 12AT7 x1
Power Amp Valve
EL34
Operating Class
Class A
Rectifier
Solid state

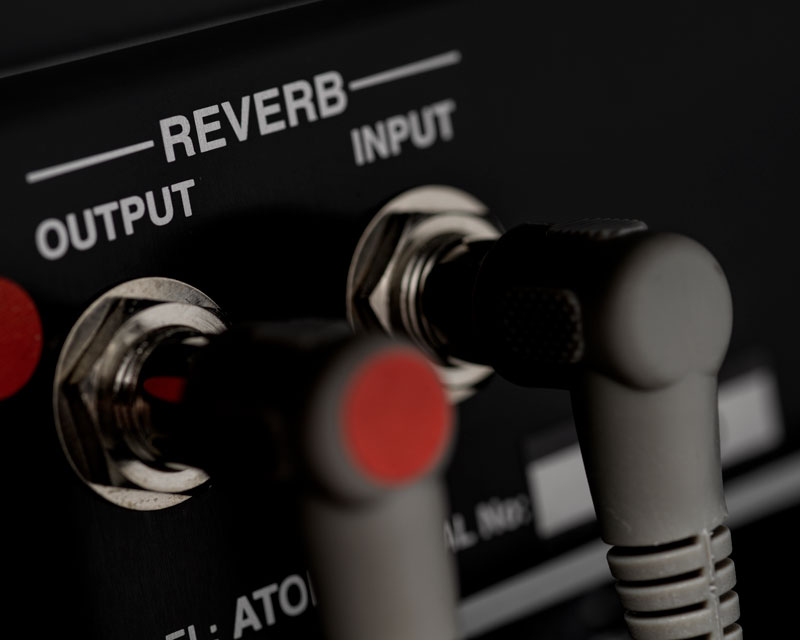

Reverb
Accutronics 2 spring, long decay
Speaker Outputs
4ohm x1
8ohm x1

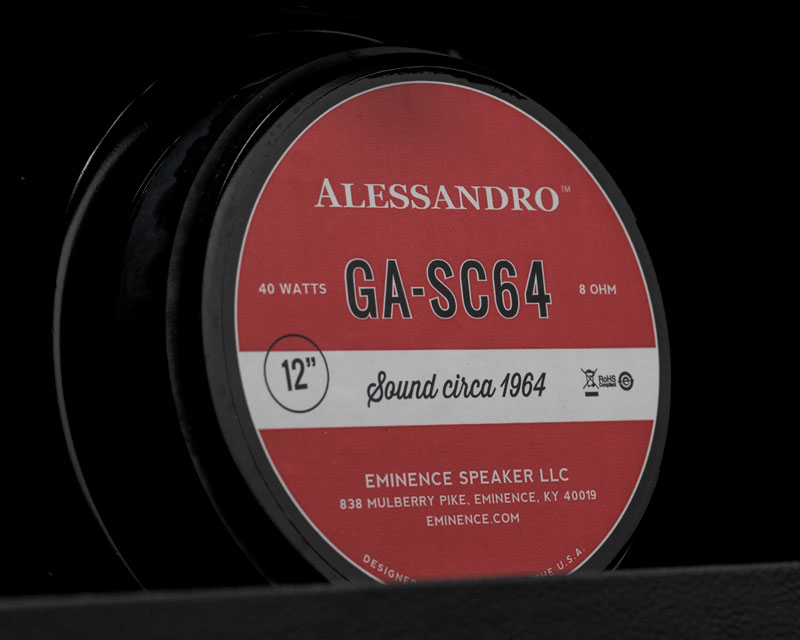

Speaker
Eminence SC64 – 12ins, 8ohm
Footswitch
F2
Dimensions
W506 x H480 x D272mm
Weight
19kg
FEATURES AND SPECIFICATION
Output Power
11 Watts RMS
Reverb
Accutronics 2 spring, long decay
Controls
Volume, Boost switch, Treble, Shift switch, Middle, Bass, Reverb, Contour
Speaker Outputs
4ohm x1, 8ohm x1
Preamp Valves
12AX7 x2, 12AT7 x1
Speaker
Eminence SC64 – 12in, 8ohm
Power Amp Valve
EL34
Footswitch
F2
Operating Class
Class A
Dimensions
W506 x H480 x D272mm
Rectifier
Solid state
Weight
19kg
SPECIFICATIONS
Output Power
11 Watts RMS
Controls
Volume, Boost switch, Treble, Shift switch
Middle, Bass, Reverb, Contour
Preamp Valves
12AX7 x2, 12AT7 x1
Power Amp Valve
EL34
Operating Class
Class A
Rectifier
Solid state
Reverb
Accutronics 2 spring, long decay
Speaker Outputs
4ohm x1, 8ohm x1
Speaker
Eminence SC64 – 12in, 8ohm
Footswitch
F2
Dimensions
W506 x H480 x D272mm
Weight
19kg
